Kordil TG05 Radar Tide Gauge
Kordil TG05 Radar Tide Gauge is a non-contact tide and water-level monitoring system combining an 80 GHz FMCW radar transducer with a stainless-steel housing and a TG05 monitoring and data-logging unit. Installed above the water, the sensor measures distance to the surface without submerged measurement equipment. The system supports harbour, coastal, river, reservoir and lake monitoring.
Water-level monitoring and recording

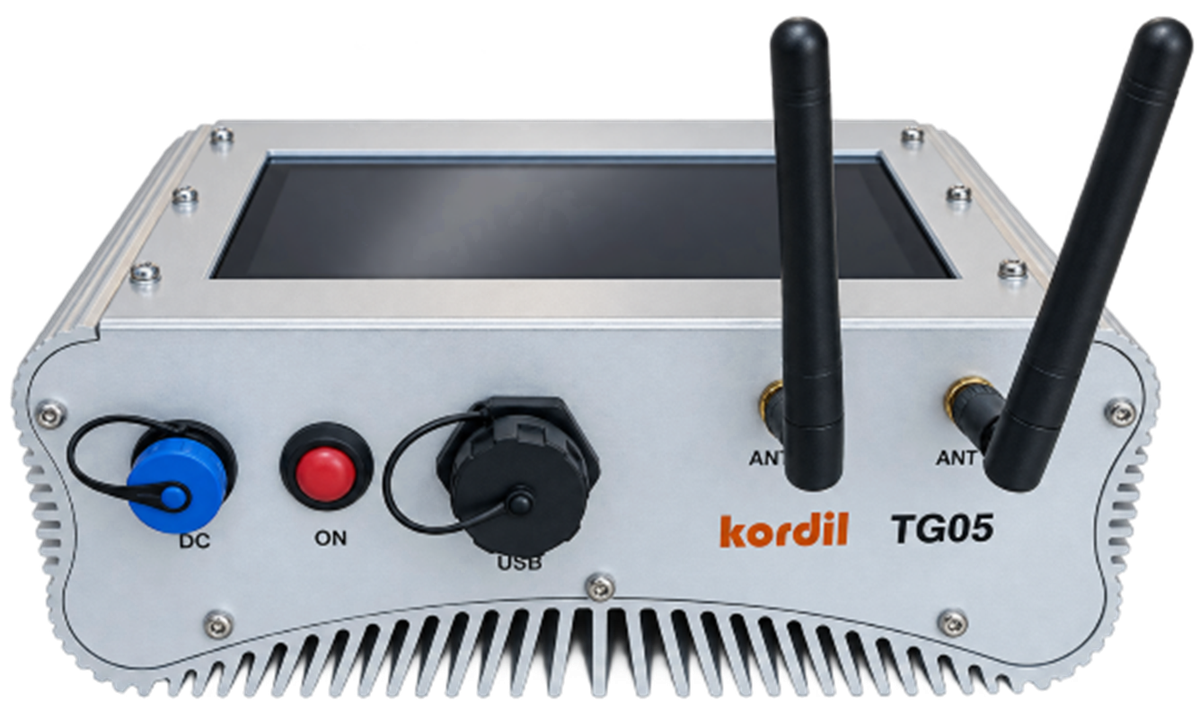

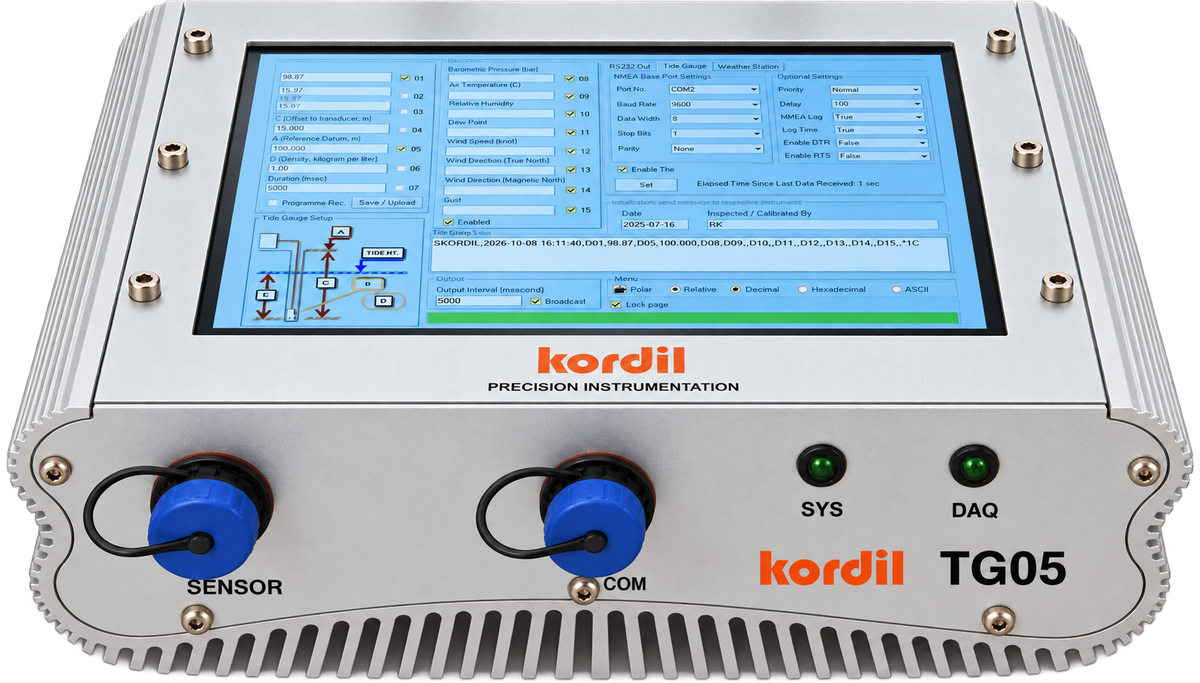

The monitoring unit provides a touchscreen interface, real-time water-level display and data logging for on-site observation and longer-term records. Wi-Fi and internet connectivity support the system's connected monitoring arrangement. Radar distance measurements are related to the installed sensor reference; a defined mounting elevation and reference datum are needed when interpreting readings as water-level elevations.

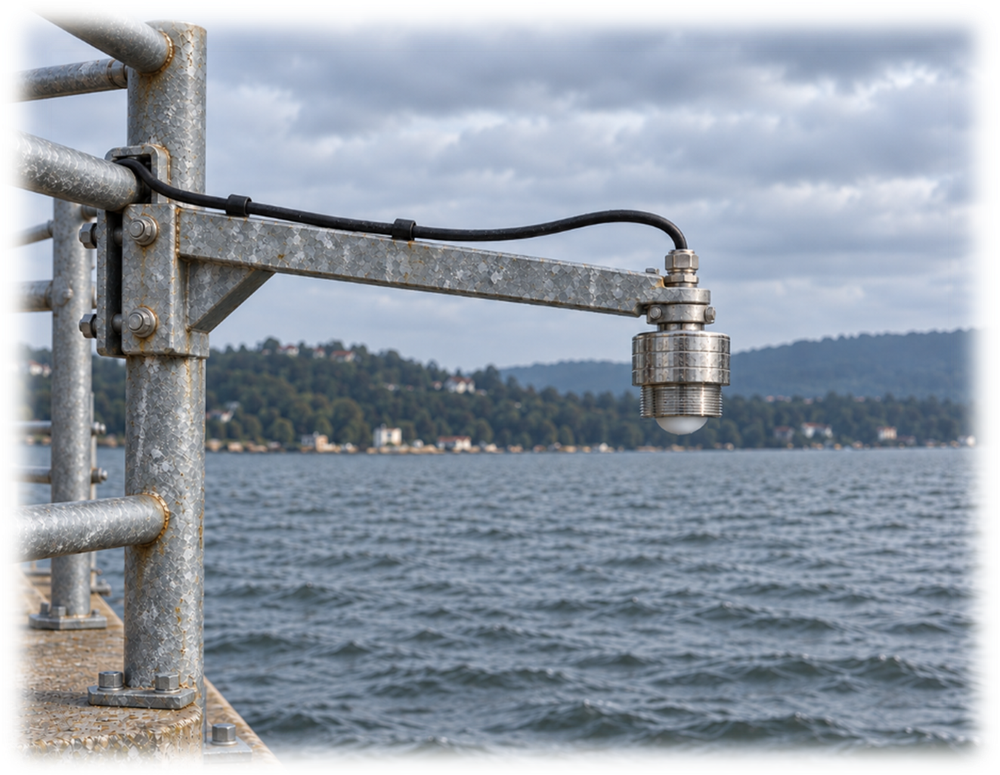

Above-water installation avoids placing the radar transducer in the water. The stainless-steel sensor housing, lens antenna and bracket or threaded mounting provide a compact arrangement for fixed monitoring locations. Configurable distance range and unwanted-echo filtering help adapt the sensor to the installation.
Technical specifications
| Parameter | Specification |
|---|---|
| Measurement principle | Frequency-modulated continuous-wave radar (FMCW) |
| Operating frequency | 80 GHz |
| TG05 system measurement range | 0.1–60 m, as specified in the TG05 datasheet |
| Transducer measurement range | 0.1–65 m |
| Transducer measurement accuracy | ±1 mm (specified sensor accuracy) |
| Transducer housing | Stainless steel |
| Transducer protection | IP67 |
| Transducer operating temperature | −30 to +75 °C |
| Transducer power supply | 12–24 V DC |
| Sensor communication | RS485, Modbus RTU |
| Default serial settings | 9600 baud, 8 data bits, no parity, 1 stop bit |
| Antenna | Lens antenna |
| Sensor mounting | Bracket or threaded connection |
| Cable entry | PG9 |
| Monitoring unit housing | Aluminum |
| Monitoring unit | Touchscreen, real-time display and data logging |
| System connectivity | Wi-Fi and internet access |
Sensor accuracy and IP protection refer to the radar transducer; installed water-level performance also depends on mounting stability, reference-level setup and site conditions.
Applications and installation
- Coastal tide and harbour water-level monitoring
- River and open-channel level measurement
- Reservoir, dam and lake monitoring
- Water-level input for flood monitoring and early-warning systems
- Fixed offshore platform and water-storage tank monitoring
- Long-term water-level records and tidal datum studies
Mount the radar perpendicular to the water surface with a clear measurement path. Keep walls, supports and other objects outside the beam to limit false echoes. Set the measurement range and reference level to suit the expected water-level variation, then check the readings against the site reference during commissioning.
For a quotation, provide the monitoring location, expected sensor-to-water distance, mounting arrangement, available power and communications, and the required reference datum.
