Baywei

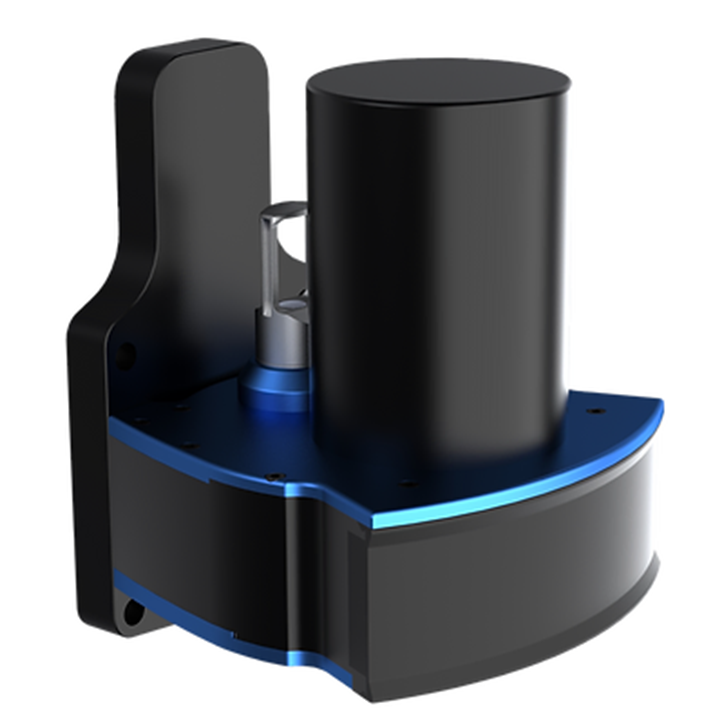

Baywei M5 is a highly versatile and user-friendly multibeam echosounder, providing high-resolution data collection capabilities. Its tightly coupled GNSS INS ensures easy integration on ultra-small vehicles, enabling rapid mobilization. With a streamlined design and low power consumption, the M5 is ideal for small autonomous surface vehicles, suitable for applications in construction, dredging, coastal surveys, and archaeology.

M2 is a highly versatile, high-resolution multibeam echo sounder designed for ease of use and integration. It is an ideal choice for advanced bathymetry tasks in engineering, robotics, archaeology, and related fields. Its hydrodynamic form factor and low power consumption make the M2 perfect even for small autonomous surface vehicles.

Baywei M1 is a compact multibeam sonar for geospatial professionals who need to extend their mapping work below the water surface. Its integrated GNSS/INS combines acoustic measurements with position and attitude information, producing georeferenced XYZ point clouds, bathymetric maps and side-scan imagery. The 1.7 kg unit is suited to portable deployments from small craft and unmanned surface vehicles, particularly where mobilisation time and payload are important.

Baywei M4 is a standalone multibeam echo sounder designed for shallow-water bathymetry and integration into small survey vessels, ASVs and USVs. Its streamlined housing and compact footprint make it a practical choice for integrators who already have a navigation solution or need to select positioning and motion sensors independently. The sonar forms 512 receive beams across a sector of up to 130 degrees and provides bathymetry and side-scan outputs.

Baywei M7 combines a multibeam sonar with an integrated inertial navigation system for shallow-water surveying. The GNSS/INS is incorporated into the sonar assembly, reducing the number of separate sensors that must be aligned and integrated on a survey platform. This makes M7 particularly useful for small boats and unmanned surface vehicles where space, cable routing and mobilisation time are limited.

Baywei M9 is an integrated multibeam survey system for projects that require a narrow acoustic beam and a compact GNSS/INS arrangement. The current configuration combines one-degree transmit and receive beam widths with 512 receive beams and a swath of up to 140 degrees. Its integrated navigation system supports deployment on conventional survey boats and unmanned surface vehicles without assembling a separate motion-sensor package.
