Klein Marine Systems

#

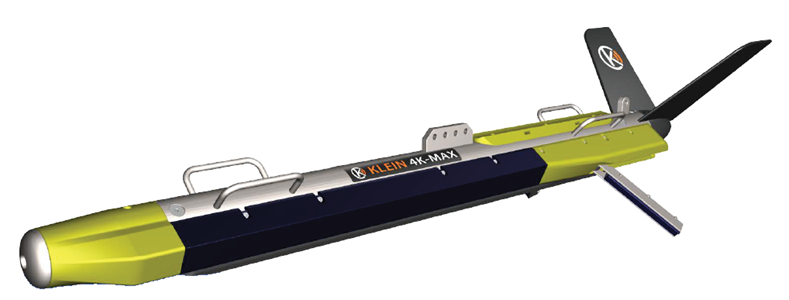

Klein 4K-MAX is the top of professional underwater survey technology with its patented MA-X View 600 gap-filling technology and TruBottom™ Tracking dedicated altimeter. It is a high-level system that can close the waterfall area under the tow without any gap in one pass. 4K-MAX delivers unparalleled 600kHz images, equivalent to 900kHz resolution, at a maximum range of 120 meters per side. It allows you to say goodbye to traditional blind spots with its advanced nadir gap filler processing algorithm, saving time and resources. This advanced side-scan sonar completes surveys 40% faster and more efficiently, resulting in reduced fuel consumption.
#
Klein 4K-SVY Professional Survey side scan sonar with Tru-Bottom Tracking. Klein 4K-SVY designed for long range deep investigations. Klein 4K-SVY has Klein Blue Technology which allows for motion tolerant performance in heavy sea states where vessel motion impacts tow fish stability by innovations in transducer like signal conditioning and processing design producing unmatched image quality and range performance.
#
Ma-X View 600 is a high-level system that can close the waterfall area under the tow without any gap in one pass. MA-X VIEW 600 side scan sonar delivers unprecedented focused 600kHz imagery at an optimum range of 100 meters with capability of reaching 240 meters. MA-X Technology provides imaging of the nadir zone (gap) with the same interpretive characteristics of side scan sonar improving survey times by approximately 40%. This means 40% less survey time at sea, 40% less fuel consumption and a higher probability to complete the survey in a window of good weather.
#
Klein System 4900 is a high resolution side scan sonar features that easy to carry, solid structure, selectable frequencies and operational depth of 300 m. The high fidelity, high-definition imaging abilities and the portability of the System 4900 make it an ideal tool for Search and Recovery (SAR) missions while its rugged construction, selectable frequencies and 300 m operational depth rating provide superb capabilities for the coastal survey and security communities.
#

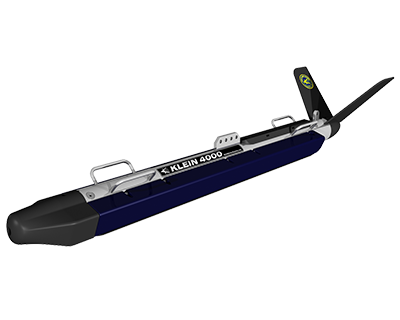

Klein System 4000 designed for long range deep investigations and optimized for shallow surveys.Klein System 4000 has Klein Blue Technology which allows for motion tolerant performance in heavy sea states where vessel motion impacts tow fish stability by innovations in transducer like signal conditioning and processing design producing unmatched image quality and range performance.
#
Klein System D3500TF is a digital CHIRP/CW Side Scan Sonar designed for deep water surveys to 3000 m depth. D3500TF is an ideal and versatile tool for various deep water survey applications due to its high fidelity, high definition imaging techniques.
#
Klein System 3900 is a high resolution Search And Rescue (SAR) side scan sonar designed for easy operations and one-man portable with the ability to be operated from a smaller boat for rapid deployment to 200 m depth. This competitively priced solution utilizes high frequency 455/900 kHz transducers for optimal range and image performance.
#
Klein System 3000 is a high resolution digital designed for deep water surveys to 1500 m depth. Providing simultaneous, dual frequency side scan in both 100 and 500 kHz, operators have the ability to survey a full kilometer swath while maintaining superior resolution for target identification at closer range. Advanced signal processing technology, small body, light and easy to operate design are its main features.
