Klein 4K MAX - Nadir Gapfiller Side Scan Sonar

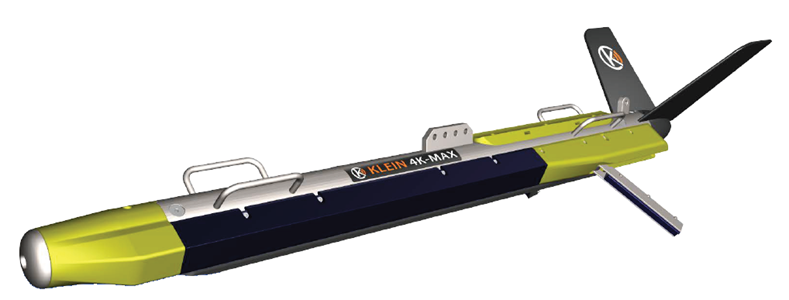

KLEIN 4K-MAX - High Resolution Side Scan Sonar with Integrated Nadir Gapfiller
Klein 4K-MAX is the pinnacle of professional underwater survey technology with its patented MA-X View 600 gap-filling technology and TruBottom™ Tracking dedicated altimeter. It is a high-level system that can close the waterfall area under the tow without any gap in one pass. This significantly increases the measurement speed and ensures complete coverage of the area during data collection.
4K-MAX delivers unparalleled 600kHz images, equivalent to 900kHz resolution, at a maximum range of 120 meters per side. It allows you to say goodbye to traditional blind spots with its advanced nadir gapfiller processing algorithm, saving time and resources.
The state-of-the-art Klein 4K-MAX side-scan sonar completes surveys 40% faster and extremely efficiently, with less fuel consumption.
Key Features:
- Focused 600 kHz Side Scan / 850 kHz Nadir Gap-Filler
- Pulse Type: FM CHIRP
- Horizontal Beam Width : 0.23° @ 600 kHz
- Maximum Operating Range (Per Side): 120 m @ 600 kHz (Environment dependent)
- Across Track Resolution: 2.4 cm @ Focused 600 kHz
- Vertical Beam Center: 15° down from horizontal
- Vertical Beamwidth: 50°
- Maximum Depth Rating: 300 m
- Heading, Roll and Pitch Sensor
- Depth (Pressure) sensor: 0-300 m
- Water Temperature Sensor: 0-35° C
- Safety Cable
- Complete Nadir Coverage
- 40% increase in survey efficiency
- Vessel fuel savings
- Enhanced Motion Tolerance
- Tru-Bottom™ Tracking
- Klein BLUE Technology for superior imaging performance
