Kordil KBS30200
Kordil Bathymetry Studio 30200 (KBS30200) Singlebeam Echosounder System
KBS30200 is Kordil's proprietary dual frequency singlebeam echosounder developed by Kordil and is a low cost dual frequency singlebeam echosounder system package, all in one with complete hardware and software including universal mounting frames and apparatus. The system is fully packaged inside a robust and durable transit case including mounting poles and bolt to mount GNSS antenna. System is designed to work depths from 0-300 meters. The case has space for any other tools (GNSS, hand tools etc.) require for a perfect singlebeam bathymetric survey which makes self check-listed bathymetry gear for surveyors.

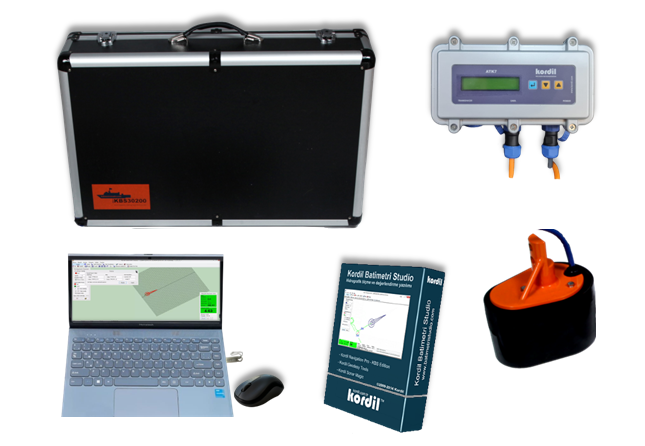

System Components
- Robust and shock resistant transport case
- PC with Windows 11 OS, mouse and USB flash drive
- Kordil Bathymetry Studio software
- Computer serial cable (RS232, 9 pin)
- Power cable (12V DC)
- Transducer mounting components
- Upside unit
- Barcheck, safety gloves, pliers, steel tape, duck tape, notebook, calculator, pen
- AML Oceanographic Sound Velocity Profiler (optional)
- Hemisphere GNSS Smart Antenna (optional)
Applications
- High precision hydrographic surveys
- Dredging and filling operations
- Bathymetric mapping for ports and harbors
- Underwater scour survey
- Route surveys
- Acoustics positioning
- Altimeter for underwater robots
Technical Specifications
- Communication: RS232 serial cable and Bluetooth™
- Transmit power: 5 watt (12 v DC input)
- Reverse polarity protection: Available
- Input power: 12 VDC, regulated
- Power consumption: 240 mA @ 12V
- Baud Rate: 4800 default (optional)
- Output rate: 0.1 - 25 sn (0,5 sn default)
- Manual mode: Same as ultrasonic frequency
- Work temperature: - 5 - +60 C
- Storage temperature: - 30 - +70 C
- Transducer CE certificate: IEC60945
- Minimum depth: 0.5 m
- Maximum depth: 100 m
- Depth resolution: 1 cm
- Precision: ±0.02 @20 m, Depth x 0.0015
- Temperature sensor (optional): 10k ohm ± 0.05C
- Resolution of temperature: 0.1C
- Beam angle 200 kHz: @3 db 9 deg.
- Beam angle 30 kHz: @3 db 26 deg.
- Power and data cable: C314
- NMEA 0183 veri formatı: $SDDPT default DBT optionel
