Kordil TG05

Tide Gauge

Kordil TG05 Tide Gauge

Kordil TG05 Tide Gauge is a high precision & high accuracy water level monitoring and logging system. With low power consumption, easy installation and compact size enables Kordil TG05 usage in a lot of different application areas. It can be installed in areas or structures like sea, dam, natural and artificial lakes, rivers, water tanks etc. User can see the retrieved tide information on Kordil MetOcean software or in the log file where $KORDIL messages from TG05 Tide Gauge are saved.


  • Communication: RS232, 3G, Flash Disk, Dropbox
  • Operating voltage External: 12V DC
  • Power consumption 5W
  • Operating temperature -20° to +60° (Protect from direct daylight)

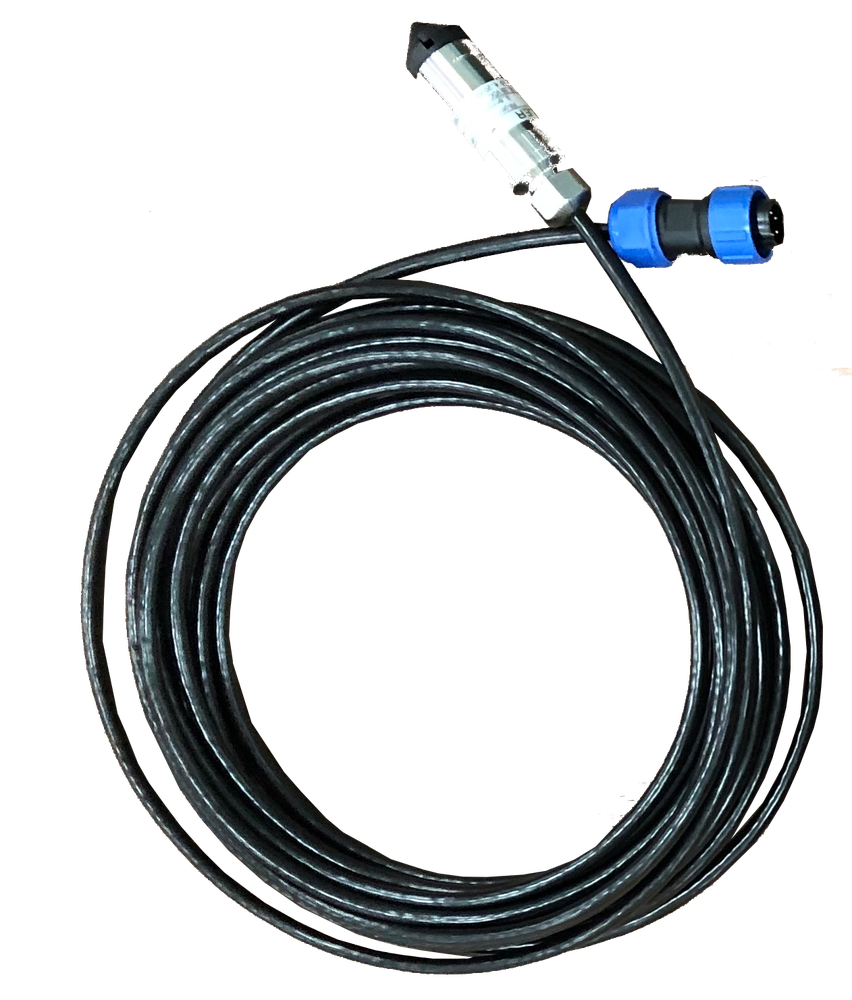

  • Sensor type Hydrostatic Pressure Transducer
  • Material: Stainless Steel
  • Depth rate and environment: 0-6 m H2O
  • Accuracy ±0.1% full scale ±1cm (RMS)
  • Housing High protection class ABS plastic case
