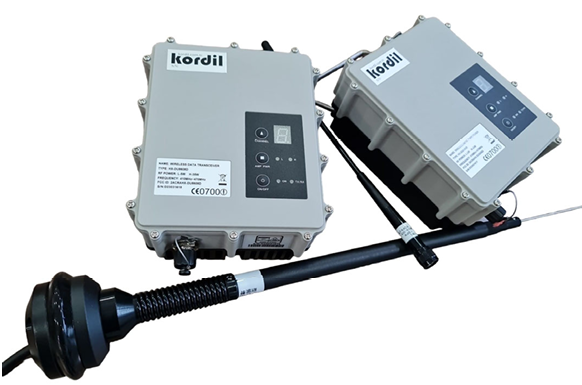

Kordil UHF35 Radio Modem
![Kordil UHF35 Radio Modem Kordil UHF35 Radio Modem](https://kordil.com/application/files/5017/1637/9229/kordil-uhf35.png)
Kordil UHF35 Radio Modem
Kordil UHF35 Radio modem, solution for critical applications requiring stability, top‐notch performance, and extensive range. This high‐speed, high‐power wireless data link is engineered to withstand the demands of GNSS/RTK surveying and precise positioning tasks. With 35 Watt of power, it ensures exceptional range even in challenging urban environments.
Kordil UHF35 Top Features
- Real time data communication
- High speed wireless data link
- Industry standard
- Simple and easy‐to‐use design
- Selectable frequencies
- Long distance range
Technical Specifications
- Frequency range: 410 - 470 MHz
- Operating mode: Half-duplex
- Channel spacing: 25 KHz, 12.5 KHz
- Modulation type: GMSK
- Operation voltage: 12V
- Frequency stability: ≤ ± 1.0 ppm
- Size: 186 x 140 x 73 mm
- Weight: 1.5 kg
- Operation Temperature: -30°C +65°C
- Antenna port: TNC, female
- Antenna impedance: 50 ohm
