NORBIT WINGHEAD X
NORBIT WINGHEAD X

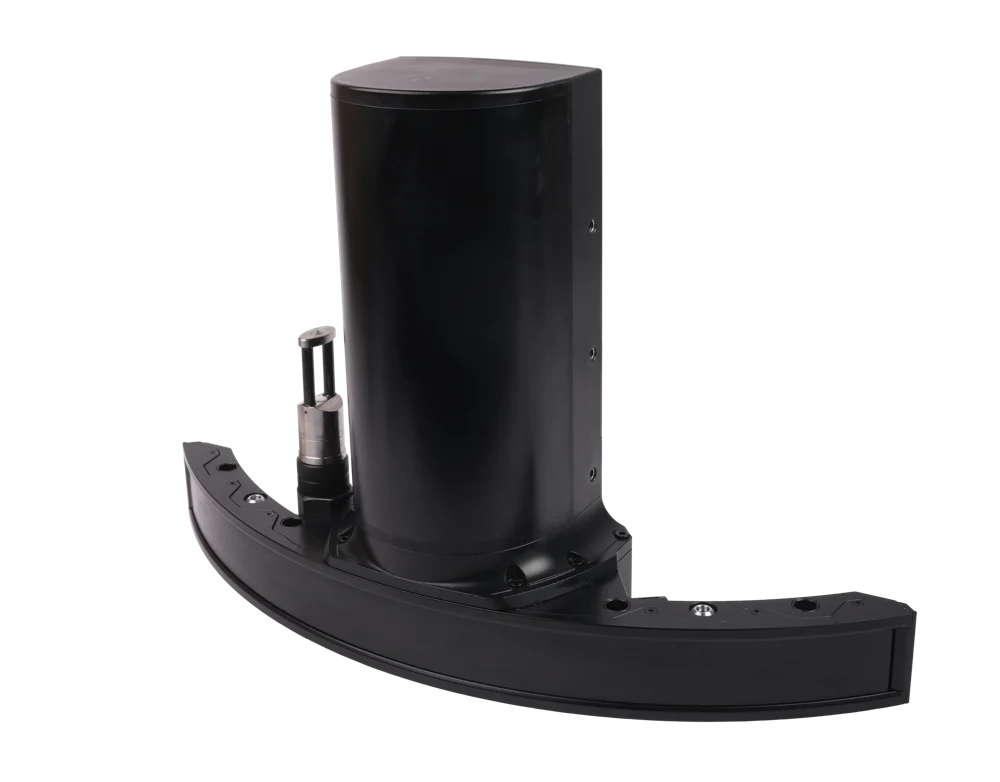

A modular curved-array multibeam sonar for detailed bathymetric mapping. The standard platform combines a narrow receive beam with a configurable navigation and stabilisation package; the Long Range version extends the acoustic depth envelope.
Modular high-resolution mapping
WINGHEAD X combines a curved sonar array with a choice of navigation and stabilisation packages. Its narrow receive beam supports detailed mapping around quay walls, bridge piers and complex seabed features. Standard and Long Range versions have different depth envelopes; the beam widths below refer to the standard model. Available GNSS/INS and optional stabilisation functions should be selected together with the vessel installation and survey requirements.
Applications and survey workflow
Bathymetric data supports harbour maintenance, dredging assessment, route surveys and the inspection of submerged infrastructure. Survey line spacing and frequency are selected to balance feature definition, coverage and the expected water depth.
Before mobilisation, the survey team defines the coordinate system, vertical reference and required deliverables. Mounting geometry, sensor offsets and time synchronisation are checked as one installation. Positioning quality, vessel motion and sound-speed conditions are reviewed during acquisition so that the final dataset can be assessed against the project specification.
Integration and deliverables
The selected hardware and software configuration determines the available outputs and interfaces. A practical workflow includes installation checks, a trial line, field quality control and documented processing. Depending on the sensor, deliverables may include a bathymetric surface, an inspection image, a point cloud or an interpreted sediment profile. Kordil can evaluate the platform, operating environment and intended use when defining the system configuration.
Technical specifications
| Frequency | 400 kHz nominal; 200–700 kHz adjustable |
|---|---|
| Acoustic depth range | Standard: 0.2–400 m; Long Range: 0.2–600 m |
| Beam width (across-track × along-track) | 0.5° × 0.9° @ 400 kHz; 0.3° × 0.5° @ 700 kHz (standard model) |
| Swath sector | 5–210° |
| Beam count | 256 / 512; 1024 and 2 × 1024 Dual Swath options |
| Acoustic range resolution | <10 mm; 80 kHz bandwidth |
| Ping rate | Up to 60 Hz, adaptive |
| Standard housing depth rating | 100 m |
| Power / supply | Typical 50–80 W; 10–28 VDC |
| GNSS/INS options | Applanix OceanMaster or SBG Apogee |
Specifications follow the original manufacturer brochure PS-250008-5. Acoustic range is distinct from housing depth rating. Options and operating conditions affect achievable performance.
Technical brochure
NORBIT WINGHEAD X original technical brochure — English PDF (PS-250008-5)
