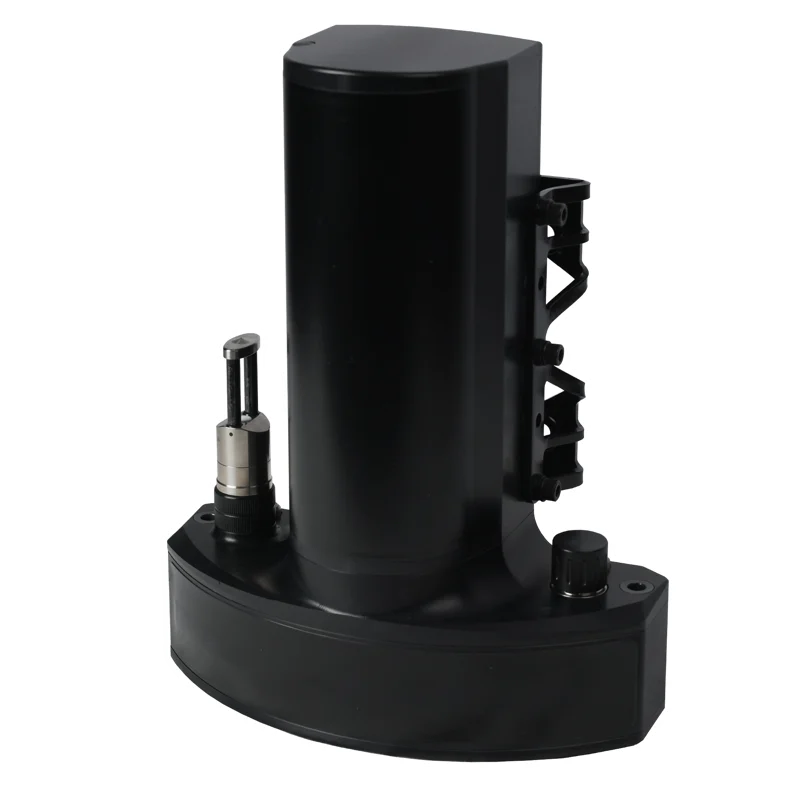

NORBIT WBMS X
NORBIT WBMS X
A configurable multibeam platform for survey vessels, small boats and uncrewed surface vehicles. Choose the sonar range and GNSS/INS package around the project, with optional pitch and yaw stabilisation, increased beam density and dual-swath operation.
A configurable survey platform
WBMS X supports research vessels, small survey boats and unmanned surface vessels. The sonar and GNSS/INS package can be configured for the operating environment, with Long Range, increased beam density, dual swath and stabilisation options. Frequency selection balances range and feature definition. Navigation performance belongs to the selected INS configuration and should not be assumed to be identical across every WBMS X package.
Applications and survey workflow
Bathymetric data supports harbour maintenance, dredging assessment, route surveys and the inspection of submerged infrastructure. Survey line spacing and frequency are selected to balance feature definition, coverage and the expected water depth.
Before mobilisation, the survey team defines the coordinate system, vertical reference and required deliverables. Mounting geometry, sensor offsets and time synchronisation are checked as one installation. Positioning quality, vessel motion and sound-speed conditions are reviewed during acquisition so that the final dataset can be assessed against the project specification.
Integration and deliverables
The selected hardware and software configuration determines the available outputs and interfaces. A practical workflow includes installation checks, a trial line, field quality control and documented processing. Depending on the sensor, deliverables may include a bathymetric surface, an inspection image, a point cloud or an interpreted sediment profile. Kordil can evaluate the platform, operating environment and intended use when defining the system configuration.
Technical specifications
| Frequency | 400 kHz nominal; 200–700 kHz adjustable |
|---|---|
| Acoustic depth range | Standard: 0.2–275 m; Long Range: 0.2–600 m |
| Beam width (across-track × along-track) | 0.9° × 0.9° @ 400 kHz; 0.5° × 0.5° @ 700 kHz |
| Swath sector | 5–210° |
| Beam count | 256 / 512; 1024 and Dual Swath options |
| Acoustic range resolution | <10 mm; 80 kHz bandwidth |
| Ping rate | Up to 60 Hz |
| Housing depth rating | 100 m standard |
| Power | 40–85 W, depending on GNSS configuration |
| GNSS/INS options | Applanix OceanMaster, WaveMaster II, SurfMaster or SBG Ekinox |
Specifications follow the original manufacturer brochure PS-240019-12. Acoustic range is distinct from housing depth rating. Options and operating conditions affect achievable performance.
Technical brochure
NORBIT WBMS X original technical brochure — English PDF (PS-240019-12)
