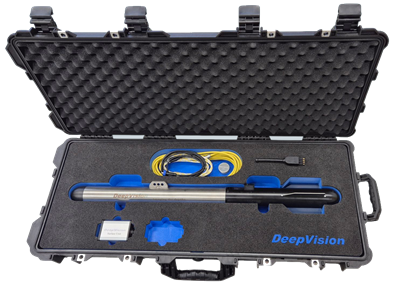

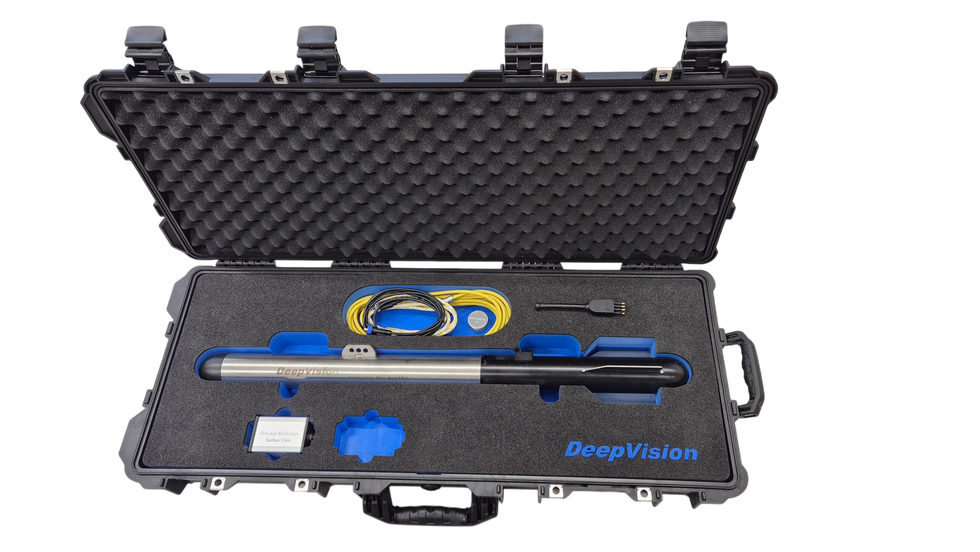

Deep Vision DE3468D SAR - Search & Rescue Sonar
DeepEye Dual Towfish 340/680 kHz SAR offers the same performance and functionality at 340 kHz as the DeepEye Towfish 340/680 kHz (Standard) system. The key difference lies in the 680 kHz channel, which has been specifically optimized for drowning victim and submerged body detection.
Deep Vision DE3468D SAR has 340-680 kHz dual operating frequencies. The high frequency is ideal for capturing high resolution images and the low frequency is perfect for scanning wide areas and locating objects. Utilizing Deep Vision’s DSSP hardware and advanced CHIRP technology, DE3468D produces crystal-clear side scan sonar imagery, even in challenging operational environments.
The system is particularly well suited for search and rescue (SAR) operations, including missions. Its portability and high-resolution imaging capability make it an effective tool for locating submerged objects, evidence, or drowning victims during emergency search operations.
Technical features
- 340 kHz & 680 kHz SAR designed to search for drowning victims.
- Dual CHIRP technology
- 0.9°/0.5° horizontal beamwidth
- 60°/60° vertical beamwidth
- 25-200 m / 10-100 m range
- 1.5 cm / 1 cm resolution
- 100 m max operating depth
- Portable and one-man use design
