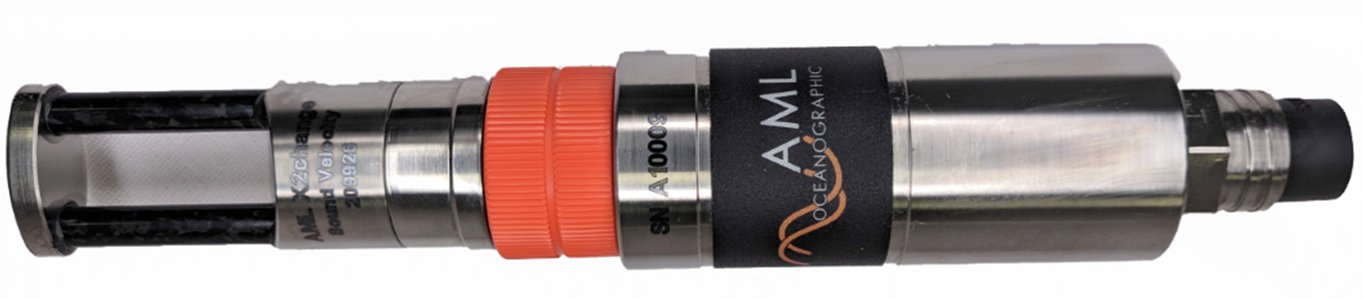

AML-1 RT Real-time Oceanographic Survey Instrument

The AML-1 is an ultra-compact, easy-to-integrate, real-time oceanographic survey instrument designed for waters up to 6000 meters deep, robust, easily transported.

With the suspension apparatus, it is tied to the rope or rope and lowered to the desired depth, and it takes measurements on the basis of the depth profile.

AML-1 is also suitable for the insertion  AML X Change ™ sensors through the sensor slot on it. The disassembly and assembly of the sensors is simple.

AML-1 RT device provides data acquisition during the survey simultaneously with its configuration. Power supply and communication of the equipment are provided through a waterproof connector.

It is generally used to measure sound velocity in sonar systems, ferrous applications, buoys, underwater observatories, and remotely controlled vehicles.

Technical Specifications

  • Number of connections: 1
  • Working depth and material: 6000 m - Titanium
  • Communication: RS-232
  • GPS: Optional
  • Input Voltage: 8-26 VDC
  • Dimensions (diameter x length): 33 mm x 80 mm
  • Weight: 0.27 kg

Configurations

  • Sound Velocity(SV Xchange)
  • Turbidity (T Xchange)
  • Pressure / Water Level (P Xchange)
  • Conductivity Temperature (CT XChange)
