AML Oceanographic Micro X

AML Oceanographic Micro X

AML Oceanographic Micro X

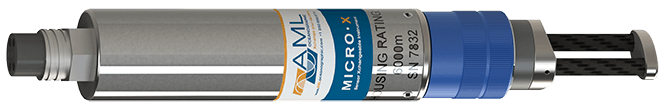

AML Oceanographic Micro X is a real-time, single sensor probe. Best known as an SV probe when used with SV Xchange and hull or pole mounted at a multibeam’s transducer head for beam steering. Micro X is also a practical choice for installation of suitable AML X Change ™ sensors with a single slot on it for desired parameters. Designed for integration applications, this probe in miniature fits on ROVs and AUVs of nearly any size.

The system is supplied with the SeaCast software and the measured data with this software can be easily transferred to the computer via the connection cable.

Technical Specifications

  • Recommended applications: Transducer Mount / Surface SV
  • Sensor ports: up to 1
  • Depth rating:500 m, 6000 m
  • Housing material: 500 m: acetal, 6000 m: Titanium
  • Communications: Rs-232, Rs-485, Wi-Fi (optional upgrade)
  • Other Applications: AUV / Glider Integration, Buoy / In-Situ Deployments, ROV Integration
  • Baud rate: 19200, 9600, 38400
  • Power source: External
  • Data output: Real-time Output
  • Biofouling control: optional upgrade
