AML Oceanographic

AML Oceanographic Smart X

AML Oceanographic Smart X

AML Oceanographic Smart X

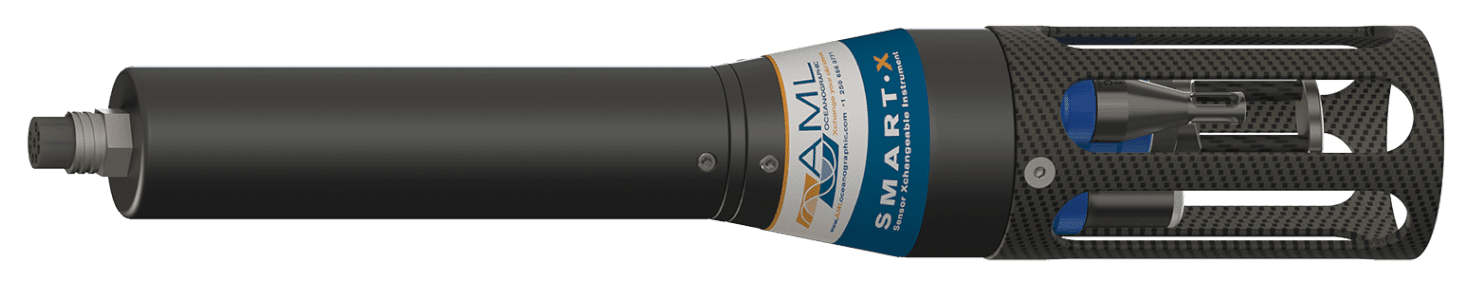

AML Oceanographic Smart X real-time probe offers quality CTD measurement in a simple yet flexible package. Ideal for AUVs or ROVs for deep or shallow deployments. Like all other X Series instruments, Smart X uses Xchange™ field-swappable sensors and converts from a CTD to an SVP with the switch of a single sensor head. Install UV•Xchange to prevent biofouling during in-situ deployments.

Field-swappable sensors also streamline recalibration: instead of sending the entire instrument back to a recalibration centre, calibrated sensor-heads can be sent to the instrument. Changing sensors is easy: simply unscrew one sensor-head and replace it with another. The Smart X is designed for vertical profiling in tight spaces like launches or boats. The instrument includes a shackle and sensor cage, as well as an LED status indicator to simplify deployment preparation.

Technical Specifications

  • Recommended applications: AUV / Glider Integration, Buoy / In-Situ Deployments Coastal Monitoring, Deep Profiling, ROV Integration, Shallow Profiling
  • Sensor ports: up to 3
  • Depth rating:500 m, 6000 m
  • Housing material: 500 m: acetal, 6000 m: Titanium
  • Communications: Rs-232, Rs-485
  • Baud rate: 19200, 9600, 38400
  • Power source: external
  • Data output: Real-time Output
  • Biofouling control: optional upgrade
