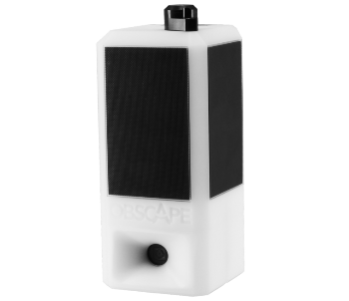

F12 MP Time-lapse Camera

F12 MPTime-lapse Camera sets a new standard in visual monitoring by redefining precision through a high-resolution 12-megapixel image sensor that captures exceptionally clear and detailed images. It is purpose-built for long-term observation of slow and gradual changes such as beach and river morphology or construction site development.

Its compact, wireless, and solar-powered design allows for easy deployment in a wide range of environments, including remote or hard-to-access locations. By capturing both spatial and temporal dynamics in high density, the F12 MP reveals subtle variations and evolving patterns often missed by conventional measurement systems, offering a more complete and insightful perspective.

Purchase Includes

  • Free access to the Obscape Data Portal
  • Mounting brackets
  • SD card (supports offline mode)

Key Features

  • High Resolution: Captures stunning 12MP still images with exceptional clarity
  • Versatile Capture Modes: Supports snapshot, image burst, video-lapse, and time-exposure for flexible use
  • Reliable Connectivity: Enables seamless data transfer via cellular networks
  • Robust Design: Weatherproof and durable housing built to withstand harsh environmental conditions
  • Easy Deployment: Lightweight with multiple mounting options for flexible and fast setup
  • Wireless & Solar Powered: Cable-free operation with sustainable solar energy, ideal for remote locations
  • Integrated Data Portal: User-friendly interface for efficient data access, management, and analysis

Technical Specifications

General Specifications

  • Housing Size: 195 mm height × 87 mm width × 87 mm depth
  • Weight: 2 kg
  • Primary Power Source: Solar-powered (3 Watt)
  • Connectivity: Cellular (4G with 2G fallback – region specific)
  • Cellular Data Load: ~1.5 MB per message (12.3 MP image)
  • Real-Time Data Interval: 10 minutes – 24 hours
  • Battery Type: 1 × 18650 Lithium-ion battery
  • Nominal Voltage: 3.7 V

Parameters

  • Time-lapse Interval: 10 – 60 minutes (user selectable)
  • Capture Modes: Snapshot, image burst, video-lapse, time-exposure
  • Burst Size: 1 to 10 images
  • Burst Frame Rate: 0.25 to 10 fps
  • Diagnostic Parameters: Battery voltage, internal temperature, atmospheric pressure, signal strength

Data Storage

  • Cloud Storage: Free access to the Obscape Data Portal for real-time and historical data, sensor configuration, alerts
  • Storage Duration: Images are stored on the Obscape Data Portal for two years from date of capture - if this is not sufficient exception storage duration can be purchased
  • On-board SD Card: Data stored to the on-board SD card as a backup - or for cases where data connection is absent

Optional Data Outputs

  • Large: 12.3 MP (4608 × 2592 pixels)
  • Medium: 5 MP (2560 × 1440 pixels)
  • Small: 2 MP (1920 × 1080 pixels)

Data Access

Seamlessly connect field data & office operations.

  • Image Viewer: Clickable thumbnails with time range selector for easy browsing

  • Downloads: JPEG image bundles (zipped) and time-lapse videos in AVI or MP4 format

  • D Forwarding: Data can be forwarded automatically via JSON API or HTTP POST

  • Notifications: Real-time alerts for offline status, low battery, or parameter threshold exceedance
