Radar Wave Gauge

Radar Wave Gauge

Radar Wave Gauge

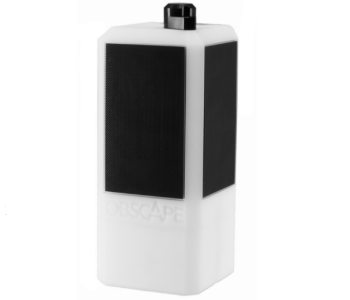

Radar Wave Gauge delivers accurate, real-time wave measurements anytime, anywhere. Powered by a high-precision radar sensor with millimeter-level accuracy, it directly measures water surface elevation, eliminating the drawbacks of pressure-based systems. With an impressive 40-meter range and no submerged components, it avoids complex underwater installations and reduces maintenance needs.

Designed for maximum flexibility, it can be easily installed on fixed structures like platforms, piers, poles, jetties, or bridge decks. Its versatile and low-impact design makes it the ideal solution for wave monitoring in coastal, offshore, and inland environments alike.

Purchase Includes

  • Free access to the Obscape Data Portal
  • Mounting brackets
  • SD card (supports offline mode)

Key Features

  • Accurate Wave Data: Delivers precise and consistent measurements for reliable wave monitoring and analysis.
  • No Underwater Components: Radar-based design eliminates submerged parts, reducing maintenance and enabling operation in harsh or dynamic environments.
  • Reliable Connectivity: Real-time data transmission via cellular networks ensures continuous access and minimal data gaps.
  • Compact & Robust Design: Built with weatherproof and durable housing to withstand extreme environmental conditions.
  • Integrated Data Portal: Access and manage data efficiently through the intuitive Obscape Data Portal, with visualization tools and customizable alerts.

Technical Specifications

General Specifications

  • Housing Size: 195 mm height x 87 mm width x 87 mm depth
  • Weight: 2 kg
  • Primary Power Source: External power source required: 6 V
  • Connectivity: Cellular (4G with 2G fallback)
  • Cellular Data Load: ~8 kB per message
  • Real-Time Data Interval: 30 minutes – 24 hours (User selectable)
  • Battery Type: 1 x Lithium-ion battery
  • Nominal Voltage: 3.7 V

Parameters

  • Vertical Reference: Specified by user
  • Maximum Range: 40 m
  • Sampling Interval: 30 minutes
  • Burst Length: 24 minutes (7168 samples at 5 Hz)
  • Telemetry Data Queue: In the event of temporary connection outages, a data queue ensures data is sent once connection is restored
  • Internal Sampling Frequency: 5 Hz
  • Filtered Frequency Range: 0.05 - 1 Hz (1 - 20 seconds)
  • Diagnostic Parameters: Battery voltage, internal temperature and atmospheric pressure, signal strength

Sensor

  • Radar Sensor: InnoSenT iSYS-6030
  • Sensor Accuracy: 0.1% of measured range

Data Storage

  • Cloud Storage: Free access to the Obscape Data Portal for real-time and historical data, sensor configuration, alerts
  • On-Board Sd Card: Data stored to the on-board SD card as a backup - or for cases where data connection is absent

Data Access

Seamlessly connect field data & office operations.

  • Real-time data: Wave and water level data
  • Download: CSV file, graphs, PDF report
  • Forwarding: JSON API or HTTP post
  • Notifications: Offline, low battery, parameter threshold exceedance
