Mariner X2

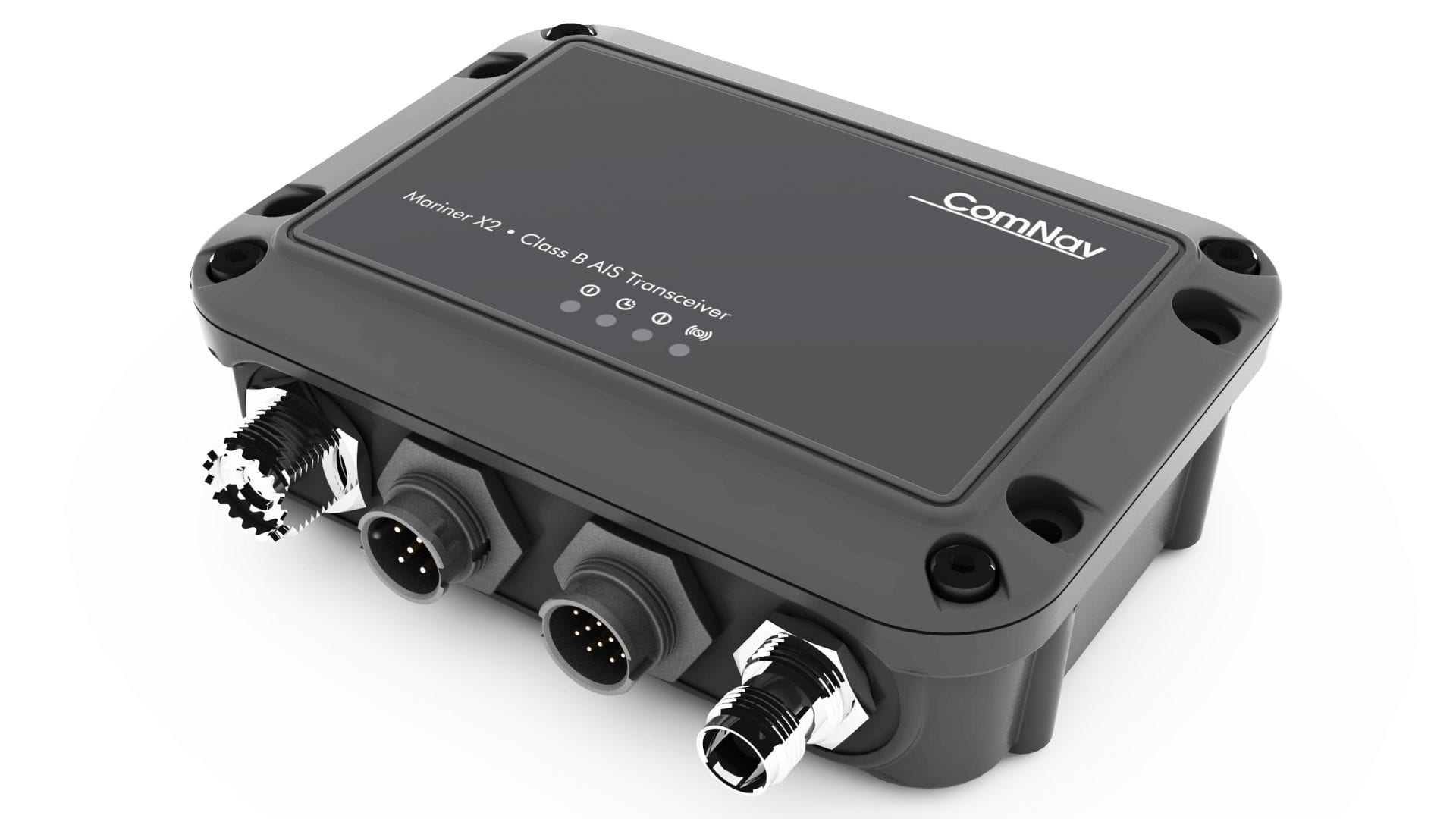

ComNav Mariner X2 Class B Transponder
ComNav AIS is a security system that automatically informs your vessels and coastal authorities and makes them seen to each other instantly and dynamically. ComNav, Mariner X2 Class B It is suitable for all types of ships operating in territorial waters or near shore. Each product is equipped with a state-of-the-art AIS engine to ensure the reliability of critical tasks. The boat position is provided by the Global Positioning System (GPS), while communication between ships is provided by VHF radio. ComNav's AIS waterproof electronics are designed to IP67 standards, meet international compliance requirements including USCG, IMO, Wheelmark, FCC, IEC and EU standards, and are rigorously tested to ensure the highest quality.
Features
- See and be seen using your on-board chart plotter
- Display graphically AIS target overlay on standard radars and multifunction chart
- Navigation status between vessels and shore traffic monitoring centres
- Vessel monitoring of Class B Transmissions over standard VHF frequencies
- Allows fleet of vessels to be efficiently monitored and port traffic better managed
- Type approvals: FCC, USCG standard in USA, R&TTE Europe, and IC in Canada
- IP67 waterproof enclosure design with marine grade connectors
- Standard NMEA 0183, NMEA 2000® and USB interface
- Silent mode — User selectable
- Built-in 50 channel GPS receiver complemented by an integrated GPS antenna
- Easily upgradeable through PC software via USB
- Meets CE requirements
Mariner X2 Technical Specification
- Power: 12 to 24 VDC
- Power Consumption: 150mA @12VDC, <2W average
- GPS Receiver: AIS internal
- 50 channels
- NMEA2000®
- IEC61162-1: NMEA0183 output, 38400baud
- IEC61162-1: NMEA0183 input, 4800baud
- Transmitter x 1 / Receiver x 2
- Frequency: 156.025 to 162.025 MHz in 25KHz steps
- Output power: 2W
- Receiver sensitivity: <-110dBm
Brochures
- Brochure English
- Türkçe Teknik Broşür
