LCSonar

Shark-S600S


The Shark-S600S High-Resolution Single-Frequency Side Scan Sonar is a compact, lightweight, and portable seabed imaging system designed for shallow to mid-water survey applications requiring high image clarity and ultra-low power consumption. Operating at 600 kHz with support for LFM (CHIRP) and Continuous Wave (CW) transmission, the system delivers high-contrast sonar imagery with a maximum range of 120 m per side. Its narrow horizontal beamwidth ensures precise target definition, while optimized hydrodynamic towfish design provides stable and reliable towing performance. The system supports single-operator deployment and multiple installation methods, including towed, hull-mounted, and side-mounted configurations. Supplied with proprietary OTech sonar software, the Shark-S600S enables real-time mosaicking, live mapping, data recording and playback, and standard XTF output for third-party processing, making it an efficient and cost-effective solution for rapid response and routine survey operations.

Key Features:

  • Single-frequency operation: 600 kHz
  • CW and LFM CHIRP transmission
  • 0.3° narrow horizontal beamwidth for high-resolution imaging
  • Maximum Operating Range (Per Side): up to 120 m (environment dependent)
  • Across Track Resolution: 1.25 cm
  • Along Track Resolution: 0.005h (h denotes towfish height above the seabed)
  • Vertical Beam Center: Default 20°,  Tilted Down 10°, 15° optional.
  • Vertical Beamwidth: 50°
  • Maximum Depth Rating: 500 m

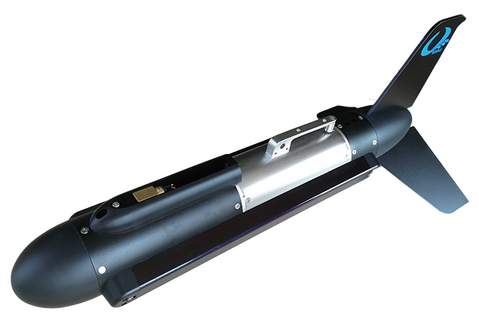

  • Towfish design: compact, lightweight, pressure-resistant housing optimized for stable towing
  • Towfish Size / Weight (Air): 767 mm x 105 mm (length x diameter) / 15 kg
  • Power consumption: 110/220 VAC, 15 W
  • Software: OTech sonar software with real-time mosaicking, live online mapping, data recording and playback, and OTSS/XTF output formats
