Ohmex SonarMite BTX OEM Singlebeam Echosounder System

SonarMite BTX OEM

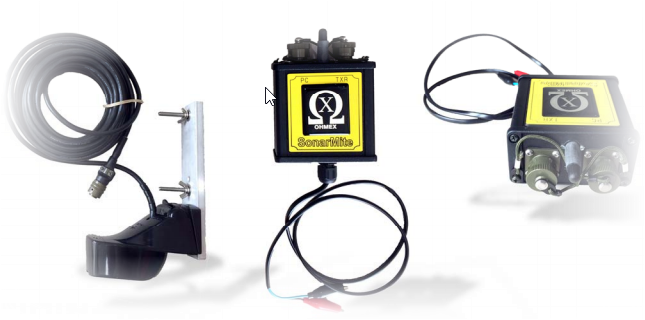

Ohmex SonarMite BTX OEM Singlebeam Echosounder

Ohmex Sonarmite BTX OEM single frequency Echo sounder (sonar) is the best choice for shallow water bathymetric surveys up to 75 meters deep. The SonarMite Echo Sounder was the result of nearly two years of research and development to further extend the boundaries of shallow water hydrographic surveying equipment. Active transducer technology developed for Sonarmite offers reliable survey in shallow water by automatically adjusting signal quality according to depth changes, digital signal processing and filtering. 235 kHz operational frequency allows surveys to be carried out without being affected by almost any noise source. Repeated reflections are a big problem in the surveying of shallow areas, SonarMite’s great success in surveying these areas has been tested in many projects. Through utilizing bluetooth connection and less cable requirements, it is the most portable echosounder that can be installed on all types of watercraft and remote-controlled boats

SonarMite BTX OEM Singlebeam Technical Specifications

Transducer Frequency: 235 kHz Active Transducer

Beam Spread Angle: 8° - 10°

Depth Range: 0.30 m to 75.00 m (Software limited)

Accuracy: +/- 0.025 m (RMS)

Sound Velocity Range: 1400 to 1600 m/sec

Data Output Range: 2 Hz

Ultrasonic Ping Range: 3 to 6 Hz (Depth dependent)

Power Input: 9‐24 v

Data Output: RS232 / Bluetooth

Weight: 0.75 kg

The Ohmex SonarMite BTX OEM is a compact and versatile echo sounder device designed for underwater surveying and mapping applications. It is commonly used in hydrographic surveys, bathymetric mapping, sediment analysis, and other marine research and exploration tasks. Here's an overview of its features and capabilities:

Compact Design: The SonarMite BTX OEM is designed to be lightweight and compact, making it suitable for deployment on small vessels, autonomous underwater vehicles (AUVs), remotely operated vehicles (ROVs), and other platforms where space is limited.
High-Resolution Imaging: The device is equipped with advanced sonar technology capable of producing high-resolution images of the underwater environment. It uses a single-beam echo sounder configuration to measure water depth and detect underwater features with precision.
Bluetooth Connectivity: The SonarMite BTX OEM features Bluetooth connectivity, allowing it to wirelessly transmit data to a compatible computer or mobile device for real-time monitoring and data logging. This wireless capability enhances flexibility and ease of use in field operations.
Integrated GPS: To provide accurate georeferenced data, the SonarMite BTX OEM integrates with GPS systems to record the position and coordinates of each depth measurement. This allows users to generate accurate bathymetric maps and charts of the surveyed area.
User-Friendly Interface: The device is designed with a user-friendly interface, featuring intuitive controls and menu navigation for easy operation by both experienced surveyors and novice users.
Customizable Configurations: The SonarMite BTX OEM offers customizable configurations to meet specific survey requirements and operational preferences. Users can adjust parameters such as ping rate, depth range, and data logging settings to optimize performance for different survey conditions.
Wide Range of Applications: This echo sounder is suitable for a wide range of underwater surveying applications, including hydrographic mapping, dredging operations, environmental monitoring, habitat assessment, and marine engineering projects.

Overall, the Ohmex SonarMite BTX OEM is a reliable and efficient echo sounder solution for underwater surveying and mapping tasks, offering high performance, versatility, and ease of use in various marine environments.
